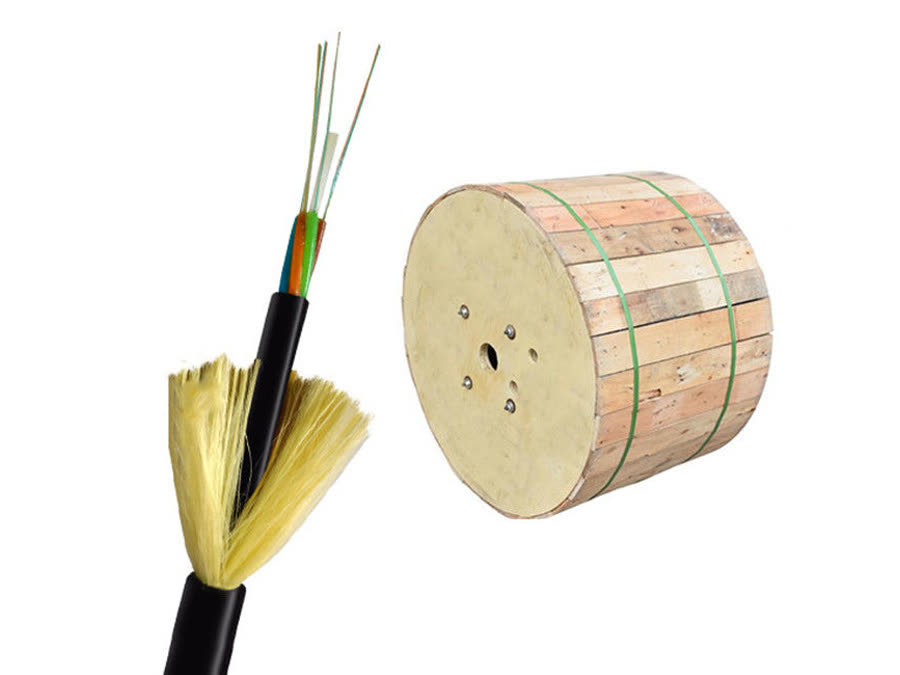

Home/Products/ADSS Cable/24 Core ADSS All-Dielectric Self-Supporting ADSS Fiber Optic Cable SM G652D With Aramid Yarn
ADSS
24 core · G652D · self-supporting
01
Introducing our High Quality ADSS Fiber Optic Cable, designed to deliver reliable and efficient communication across long distances. This 24 Core ADSS Cable utilizes Single Mode (SM) G652D fibers and is reinforced with Aramid Yarn for enhanced durability and performance. Our ADSS (All-Dielectric Self-Supporting) cables are ideal for both aerial installations and long-span applications without the need for metallic elements, making them perfect for high-voltage environments.
02
03
04
| Specification | Details |
|---|---|
| Product Name | ADSS Fiber Optic Cable |
| FiberType | Single Mode (SM)G652D |
| Core Count | 24 Core |
| Cable Design | All-Dielectric Self-Supporting (ADSS) |
| Reinforcement Material | Aramid Yarn |
| Outer Jacket Material | High-density Polyethylene (HDPE) |
| Tensile Strength | Up to 4000 N |
| Operating Temperature Range | -40℃ to+70℃ |
| Attenuation at 1310nm | ≤0.36 dB/km |
| Attenuation at 1550nm | ≤0.22 dB/km |
| Maximum Span Length | Up to 1000 meters (depending on specific conditions) |
| Installation Method | Aerial(pole to pole,tower to tower,etc.) |
| Cable Diameter | Customized based on specific requirements |
| Sheath Color | Black (customizable upon request) |
Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.
05
High-Quality Transmission With the use of G652D Single Mode fibers, the cable ensures minimal signal loss and excellent transmission performance over long distances.
Enhanced Durability The use of Aramid Yarn provides the cable with outstanding mechanical properties, including high tensile strength and resistance to wind, ice, and temperature variations.
Easy Installation Lightweight and easy to handle, our ADSS cable can be installed quickly and efficiently in various aerial settings without the need for support or conductive elements.
Cost-Effective The cable's all-dielectric nature eliminates the need for grounding and bonding, reducing installation and maintenance costs.
Wide Application Range Suitable for a variety of applications, from city networks to remote rural communications, ensuring flexibility in deployment.
