72 Core ADSS Fiber Optic Cable Single Jacket For 100M Span Use

Name: 72 Core ADSS Fiber Optic Cable Single Jacket For 100M Span Use
Brand: Ebocom

72 core · single jacket

72 Core AerialPower line

Request a quote All products

72 Core ADSS Fiber Optic Cable Single Jacket For 100M Span Use

Product description

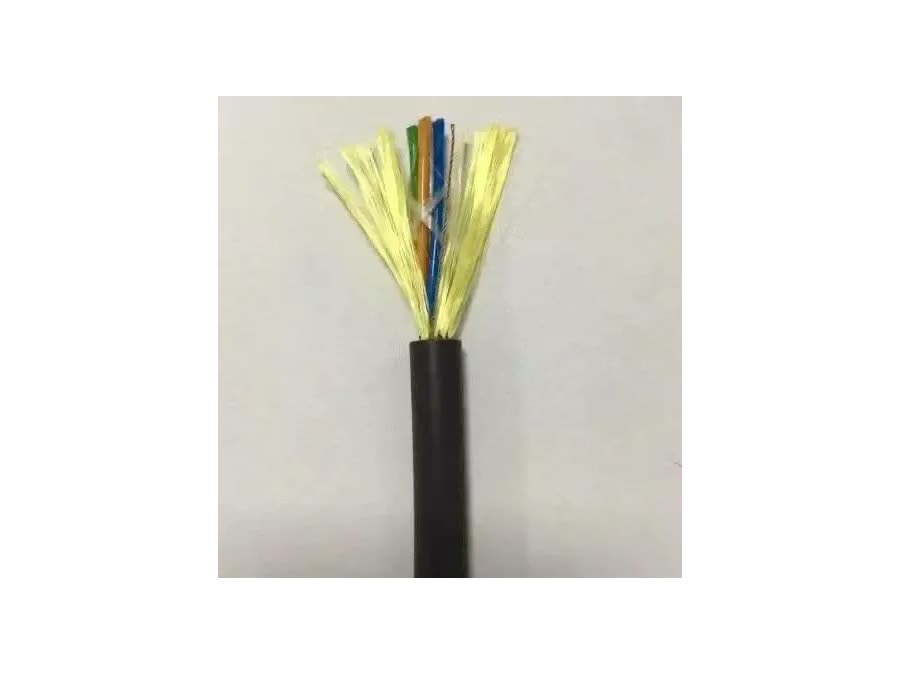

The 72 Core Single Jacket ADSS Cable is a cost-effective, high-performance aerial fiber solution designed for short and medium-span applications. By utilizing a 6-loose-tube structure and a streamlined Single Jacket (SJ) design, this cable offers a reduced diameter and lighter weight, significantly lowering the load on utility poles. Reinforced with high-modulus Aramid Yarn, it provides the necessary tensile strength for reliable performance in distribution power lines and urban fiber rollouts.

Key features

Distribution Power Lines Perfectly suited for installation on low-voltage and medium-voltage distribution poles where space and weight capacity are limited.
Urban FTTH Rollouts Ideal for "Fiber to the Home" deployments in densely populated areas, allowing for quick and efficient aerial installation.
Short-Span Crossings Optimized for spans between 50m and 150m, making it a budget-friendly alternative for campus networks and municipal connectivity.
Low-Wind & Low-Ice Regions Designed for environments with moderate weather conditions, providing a balanced solution between cost and mechanical durability.
Last-Mile Connectivity Used as a reliable backbone for 5G small cell sites and CCTV security networks in aerial infrastructures.
Performance Validation Even our lightweight Single Jacket cables are rigorously tested in our Independent Performance Lab. We ensure that the fiber excess length is perfectly managed within the 6 loose tubes to prevent attenuation under stress.

Applications

Distribution Power Lines Perfectly suited for installation on low-voltage and medium-voltage distribution poles where space and weight capacity are limited.
Urban FTTH Rollouts Ideal for "Fiber to the Home" deployments in densely populated areas, allowing for quick and efficient aerial installation.
Short-Span Crossings Optimized for spans between 50m and 150m, making it a budget-friendly alternative for campus networks and municipal connectivity.
Low-Wind & Low-Ice Regions Designed for environments with moderate weather conditions, providing a balanced solution between cost and mechanical durability.
Last-Mile Connectivity Used as a reliable backbone for 5G small cell sites and CCTV security networks in aerial infrastructures.

Technical specifications

Item	Specification Details
Fiber Count	72 Cores
Structure	6 Loose Tubes (12 Fibers per tube)
Strength Member	High-Modulus Aramid Yarn
Jacket Type	Single Jacket (HDPE / AT)
Fiber Type	G.652.D (Singlemode)
Cable Diameter	Approx. 10.5mm - 12.0mm
Typical Span	50m - 150m (Customizable)
Tensile Strength	Optimized for specified span and load
Operating Temp	-40°C to +70°C

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

ADSS produced in-house from loose tube to final sheathing, with span design support for each project

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

Production capacity up to 100 km per day, so large project quantities keep their delivery date

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
