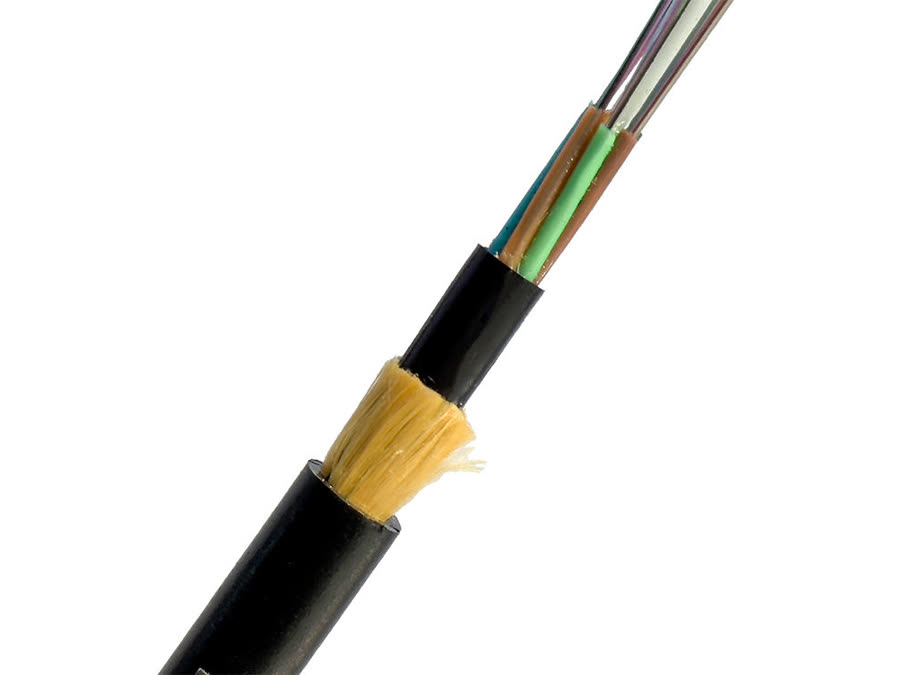

ADSS 24 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span

24 core · double jacket

24 Core AerialPower line
ADSS 24 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span

01

Product description

The Ebocom ADSS 24 Core Double Jacket Fiber Optic Cable is an all-dielectric self-supporting (ADSS) design specially developed for medium-span aerial installations up to 200 meters. This cable uses 100% pure aramid yarn (no polyester blend) as the main strength member, providing superior tensile strength, excellent sag performance, and long-term stability under harsh outdoor conditions. With a double PE jacket structure, it offers enhanced protection against UV radiation, moisture, and mechanical stress, making it ideal for power line communication and outdoor telecom networks. The outer diameter can be customized based on span length, installation conditions, and fiber count requirements. Ebocom ensures every ADSS cable meets strict testing standards — from raw material inspection to final product testing — to guarantee long service life and stable optical transmission.

02

Key features

  • 24 Core Fiber Design Supports high-capacity transmission for backbone and access networks.
  • Double Jacket Protection Inner and outer PE sheaths provide excellent mechanical strength and UV resistance.
  • 200m Span Capability Stable and safe performance for medium-span aerial installations.
  • 100% Aramid Yarn Strength Member True aramid reinforcement (not mixed with polyester) for superior tensile performance.
  • All-Dielectric Structure No metal, no grounding required, safe for installation along power lines.
  • Customizable Outer Diameter Tailored to project needs for different span requirements.

03

Applications

  • Power transmission communication networks
  • Aerial fiber installations along utility poles
  • Medium-span outdoor telecommunication lines (up to 200m)
  • Smart grid and industrial communication networks
  • Rural broadband and FTTx projects

04

Technical specifications

ItemSpecification
Fiber TypeITU-T G.652D / G.657A1 / G.657A2 Single Mode
Fiber Count24 cores
Cable StructureStranded loose tube, all-dielectric design
Strength Member100% pure aramid yarn
Outer DiameterCustomizable (based on span requirement)
Jacket StructureDouble-layer PE (inner + outer)
Installation SpanUp to 200 meters
Temperature Range-40°C to +70°C
StandardsIEC 60794 / ITU-T G.652D / G.657A

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

05

Why buy it from Ebocom

01

ADSS produced in-house from loose tube to final sheathing, with span design support for each project

02

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

03

Production capacity up to 100 km per day, so large project quantities keep their delivery date

04

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

05

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
