ADSS 48 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span

Name: ADSS 48 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span
Brand: Ebocom

48 core · double jacket

48 Core AerialPower line

Request a quote All products

ADSS 48 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span

Product description

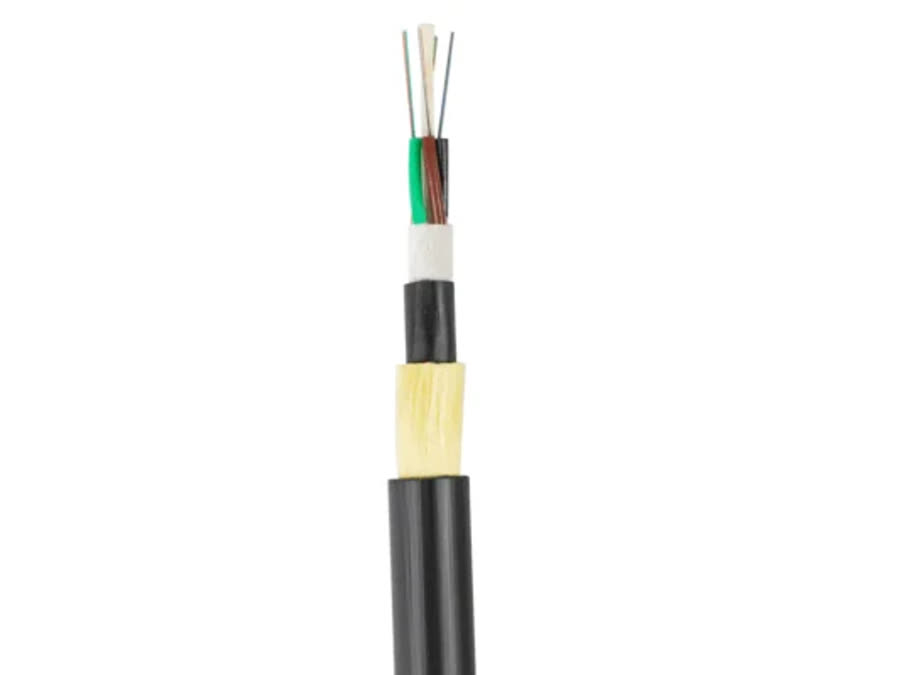

The Ebocom ADSS 48 Core Fiber Optic Cable is a high-capacity, all-dielectric self-supporting (ADSS) cable designed for medium-span aerial installations up to 200 meters. With a double-jacket PE sheath and 100% aramid yarn strength member, this cable provides outstanding mechanical strength, UV resistance, and long-term stability under outdoor environmental stress. It’s widely used for power transmission communication systems, backbone networks, and aerial telecom projects. The outer diameter and span tension can be adjusted according to customer requirements, ensuring the best balance of weight, flexibility, and strength.

Key features

48 Fiber Cores Large fiber capacity for backbone and power communication networks.
200m Span Capability Designed for medium-span applications, ensuring stable optical and mechanical performance.
Double Jacket Construction Inner and outer PE layers enhance protection against UV, water, and mechanical wear.
100% Aramid Yarn Strength Member Real aramid for maximum tensile load, no polyester mixture, ensuring long-term reliability.
All-Dielectric Design Non-metallic structure eliminates grounding needs and prevents lightning damage.
Customizable Design Outer diameter, fiber type, and jacket color can be tailored to specific project requirements.

Applications

Power transmission and communication lines
Medium-span aerial fiber networks (up to 200 meters)
Backbone networks for utilities and smart grids
Long-distance outdoor FTTx and rural broadband projects
Pole-to-pole and high-voltage line installations

Technical specifications

Item	Specification
Fiber Type	ITU-T G.652D / G.657A1 / G.657A2 Single Mode
Fiber Count	48 cores
Structure Type	Stranded loose tube, all-dielectric self-supporting
Strength Member	100% aramid yarn
Outer Diameter	Customizable according to project requirements
Jacket Type	Double PE sheath (inner + outer)
Installation Span	Up to 200 meters
Temperature Range	-40°C to +70°C
Standards	IEC 60794 / ITU-T G.652 / RoHS compliant

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

ADSS produced in-house from loose tube to final sheathing, with span design support for each project

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

Production capacity up to 100 km per day, so large project quantities keep their delivery date

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
