* Above table do not cover all of available types. Other ADSS cables can be manufactured upon customer’s request according to different span and sag environment.
01
Home/Products/ADSS Cable/All Dielectric Self Supporting Fiber Optic Cable Single Jacket ADSS 12 24 48 Core For Communication
ADSS

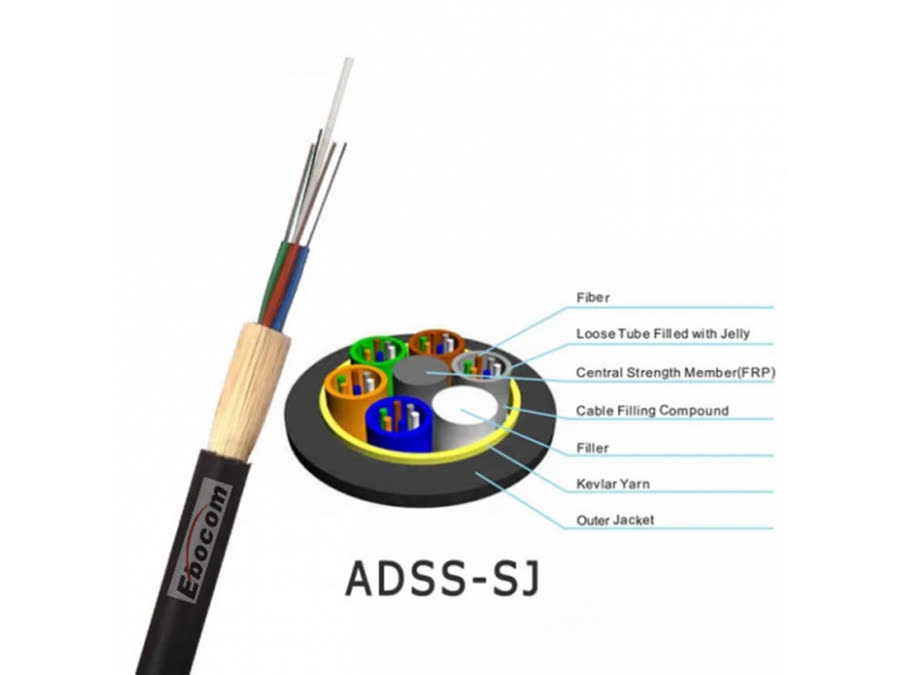

All Dielectric Self Supporting Fiber Optic Cable Single Jacket ADSS 12 24 48 Core For Communication
12–48 core · single jacket
12–48 Core AerialPower line
02
Key features
- 12–48 core configuration, single mode G.652D unless otherwise specified
- All-dielectric construction no metal, no grounding, safe to hang on live power lines
- 100% aramid yarn strength member for high tensile strength at low weight
- Self-supporting no messenger wire or additional support needed
- UV-stabilised PE or AT sheath for long-term outdoor exposure
03
Applications
- Aerial installation along distribution and transmission lines
- Long-span telecom backbone links between towers and poles
- FTTH / FTTx aerial rollouts in urban and rural areas
- Railway, highway and pipeline communication routes
04
Technical specifications
| Parameter | Value |
|---|---|
| Span(m) | Ice+Wind:0mm+35m/sec Ice+Wind:12mm+30m/sec |
| Cable O.D.(mm/in) | Cable Weight (kg/km)/(lb/kft) Max.Working Tension(N/lb) Max .Sag(%) Cable O.D.(mm/in) Cable Weight (kg/km)/(lb/kft) Max.Working Tension(N/lb) Max .Sag(%) |
| 100 | 13.9/5.472 152/102.01 7578/1704 2 13.8/0.543 150.0/100.67 6621/1489 2 |
| 200 | 14.3/0.562 161/108.05 10430/2346 3 14.1/0.555 157.0/105.37 9000/2024 3 |
| 400 | 15.9/0.625 199/133.56 23221/5223 3 15.4/0.606 187.0/125.50 19225/4331 3 |
| 500 | 16.7/0.657 220/147.65 30590/6881 3 16.1/0.633 204.0/136.91 24885/5598 3 |
| 600 | 16.3/0.641 209/140.27 26952/6063 4 15.7/0.618 196.0/131.54 22154/4983 4 |
| 800 | 16.5/0.649 216/144.97 29452/6625 5 15.9/0.625 201.0/134.90 24042/5408 6 |
| 1000 | 16.7/0.657 221/148.32 31271/7034 6 16.1/0.633 204.0/136.91 24407/5490 6 |
Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.
05
Why buy it from Ebocom
01
ADSS produced in-house from loose tube to final sheathing, with span design support for each project
02
In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch
03
Production capacity up to 100 km per day, so large project quantities keep their delivery date
04
Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification
05
Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
