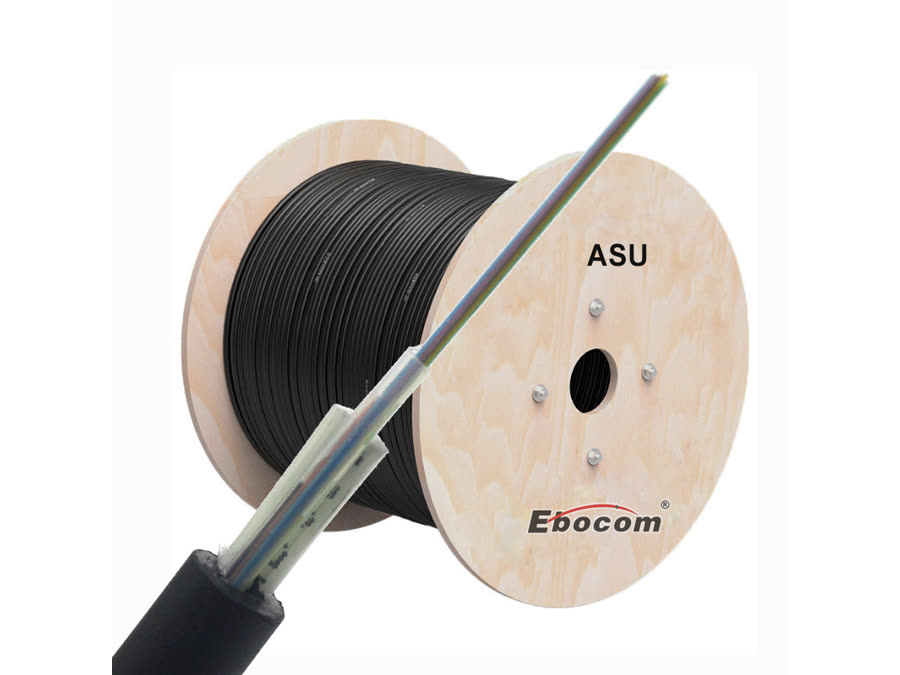

ASU Cable Single Mode G652D 80m Span 12 Core Fiber Optic Cable

Name: ASU Cable Single Mode G652D 80m Span 12 Core Fiber Optic Cable
Brand: Ebocom

12 core · G652D

12 Core AerialPower line

Request a quote All products

ASU Cable Single Mode G652D 80m Span 12 Core Fiber Optic Cable

Product description

The ASU Mini ADSS Fiber Optic Cable, often referred to as Mini All-Dielectric Self-Supporting cable, is engineered for compact aerial fiber deployments in FTTH broadband and power utility communication. Its structure includes two parallel FRP (Fiber Reinforced Plastic) strength members and one central loose tube filled with high-quality optical fibers. The outer diameter is fully customizable to meet specific span and load requirements, making it ideal for projects that demand lightweight construction and high tensile performance without metallic components. This design ensures safe installation along power lines and in environments where electrical conductivity must be avoided.

Key features

Lightweight & Strong Two FRP rods provide excellent tensile strength for aerial spans while keeping the cable small and easy to handle.
Custom Outer Diameter Tailored sizing for different pole distances and environmental conditions.
All-Dielectric Safety No metal parts mean no grounding and excellent resistance to lightning and electrical interference.
Weather Resistant UV-resistant PE or LSZH outer sheath withstands extreme temperatures and harsh outdoor climates.
Stable Transmission Low attenuation and reliable single-mode or multimode performance for long-distance communication.
FTTH and last-mile fiber installations

Applications

FTTH and last-mile fiber installations
Aerial distribution on utility poles and street networks
Communication lines along medium-voltage power routes
Rural broadband and smart grid connections
Outdoor campus or industrial network expansion

Technical specifications

Item	Details
Fiber Type	ITU-T G.652D / G.657A1 / G.657A2 single-mode or multimode
Fiber Count	2–24 cores (optional)
Cable Structure	Two FRP strength members + central loose tube
Outer Diameter	Customized per project requirements
Jacket Material	UV-resistant PE or LSZH
Recommended Span	Up to 100 m (can be designed for longer spans)
Temperature Range	-40 °C to +70 °C
Standards	ITU-T, ISO

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

Lightweight & Strong Two FRP rods provide excellent tensile strength for aerial spans while keeping the cable small and easy to handle.

Custom Outer Diameter Tailored sizing for different pole distances and environmental conditions.

All-Dielectric Safety No metal parts mean no grounding and excellent resistance to lightning and electrical interference.

Weather Resistant UV-resistant PE or LSZH outer sheath withstands extreme temperatures and harsh outdoor climates.

Stable Transmission Low attenuation and reliable single-mode or multimode performance for long-distance communication.
