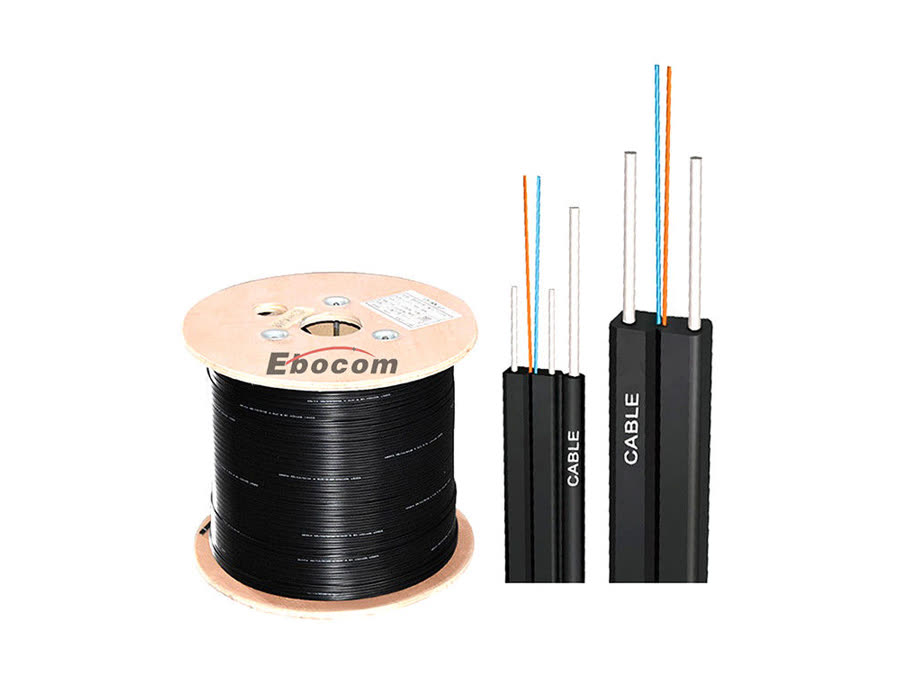

Home/Products/FTTH Drop Cable/FTTH Drop Cable Gjyxch Self-supporting G652S G657A1 For Indoor Outdoor Internet Project
GJYXCH
G657A1 · self-supporting
01
The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or white color LSZH sheath./PVC sheath.
02
03
04
| Parameter | Value |
|---|---|
| Fiber Type | ITU-T G.657A1 / G.657A2 bend-insensitive |
| Structure | Flat drop or central loose tube |
| Strength Member | 2 × FRP rods or phosphated steel wire |
| Messenger | Optional integrated steel messenger |
| Jacket | LSZH or PE, black / white |
| Tensile Strength | Short term 300 N / long term 150 N |
| Operating Temperature | -20°C to +60°C |
| Standards | YD/T 1997 / IEC 60794 / RoHS |
Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.
05
High-volume FTTH drop cable production with stable fiber supply from tier-1 fiber makers
In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch
Production capacity up to 100 km per day, so large project quantities keep their delivery date
Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification
Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
