Request a Quote

Home/Products/Patch Cord/Armored FTTA Remote Patch Cord 2-Core Fiber Optic Jumper with Spiral Tube Protection

FTTA

Armored FTTA Remote Patch Cord 2-Core Fiber Optic Jumper with Spiral Tube Protection

armored

Indoor
Request a quote All products

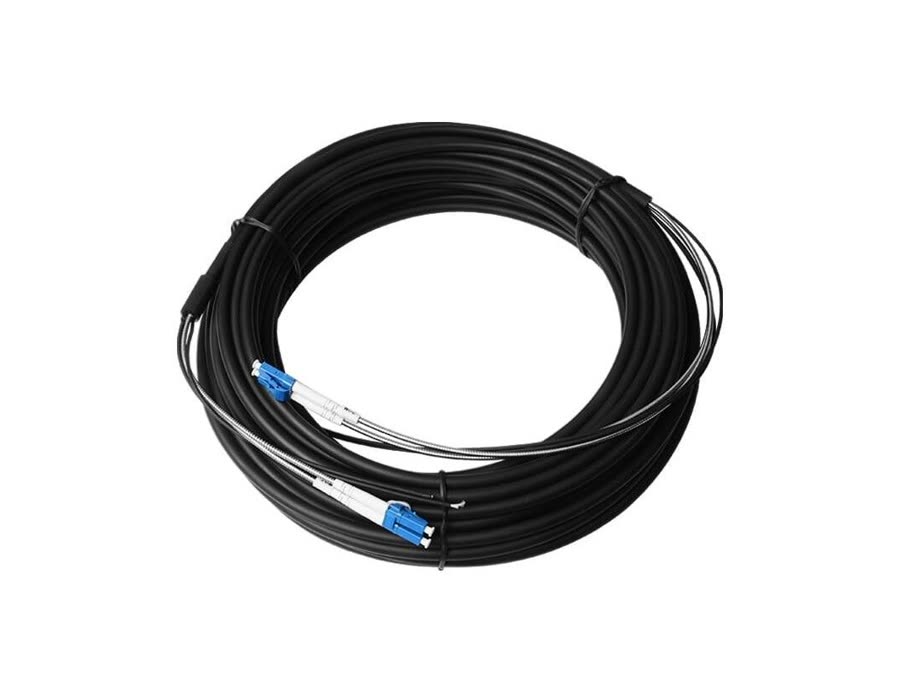

Armored FTTA Remote Patch Cord 2-Core Fiber Optic Jumper with Spiral Tube Protection

01

Product description

Our Remote Fiber Optic Patch Cord is specifically engineered for the demanding environments of Remote Radio Units (RRU) and Base Station connectivity. This 2-core jumper is designed to provide a high-bandwidth link between the BBU and RRU in 4G/5G networks. What sets this patch cord apart is its ruggedized construction. The cable core is reinforced with high-strength Aramid Yarn or Polyester Yarn fillers to handle installation tension. To ensure maximum durability at the most vulnerable point, the “tail” sections (near the connectors) are encased in a Stainless Steel Spiral Armored Tube, protecting the fiber from crushing, kinking, and rodent damage without sacrificing flexibility.

02

Key features

  • Stainless Steel Spiral Armor The connector ends feature a flexible spiral tube that prevents mechanical damage and fiber breakage during deployment.
  • Reinforced Tensile Strength Integrated Aramid or Polyester yarn fillers allow for vertical hanging and long-distance pulling in tower environments.
  • Customizable Lengths Whether you need 10m for a rooftop site or 100m+ for a tower-mounted RRU, we manufacture to your exact project specifications.
  • Low Insertion Loss High-precision LC/SC/FC/ST connectors ensure optimal signal transmission for high-speed data.
  • Weather-Resistant Outer Jacket The LSZH or PE outer sheath is UV-resistant and designed for long-term outdoor exposure.

03

Applications

  • FTTA (Fiber to the Antenna) Connecting Base Band Units (BBU) to Remote Radio Units (RRU) on cell towers.
  • RRH (Remote Radio Head) Deployments Providing high-speed data links for 4G LTE and 5G NR equipment.
  • Outdoor Harsh Environments Ideal for deployments where cables are exposed to wind, vibration, and mechanical stress.
  • Industrial Communication Ruggedized jumpers for mobile command centers and temporary field networks.

04

Technical specifications

ParameterValue
FeatureSpecification Details
Fiber Count2-Core (Duplex)
Fiber TypeG.652.D / G.657.A1 / G.657.A2 (Bend Insensitive)
ReinforcementAramid Yarn or Polyester Yarn Fillers
Connector ProtectionFlexible Stainless Steel Spiral Armored Tube
Connector TypesLC/UPC, LC/APC, SC/UPC, FullAXS, PDLC, etc.
Cable Diameter4.8mm / 5.0mm / 7.0mm (Optional)
LengthCustomized (e.g., 20m, 50m, 100m, 200m)
Tensile LoadShort term: 600N / Long term: 300N
Operating Temp-40°C to +85°C

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

05

Why buy it from Ebocom

01

Dust-controlled patch cord workshop with 100% end-face inspection and optical testing

02

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

03

Production capacity up to 100 km per day, so large project quantities keep their delivery date

04

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

05

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
