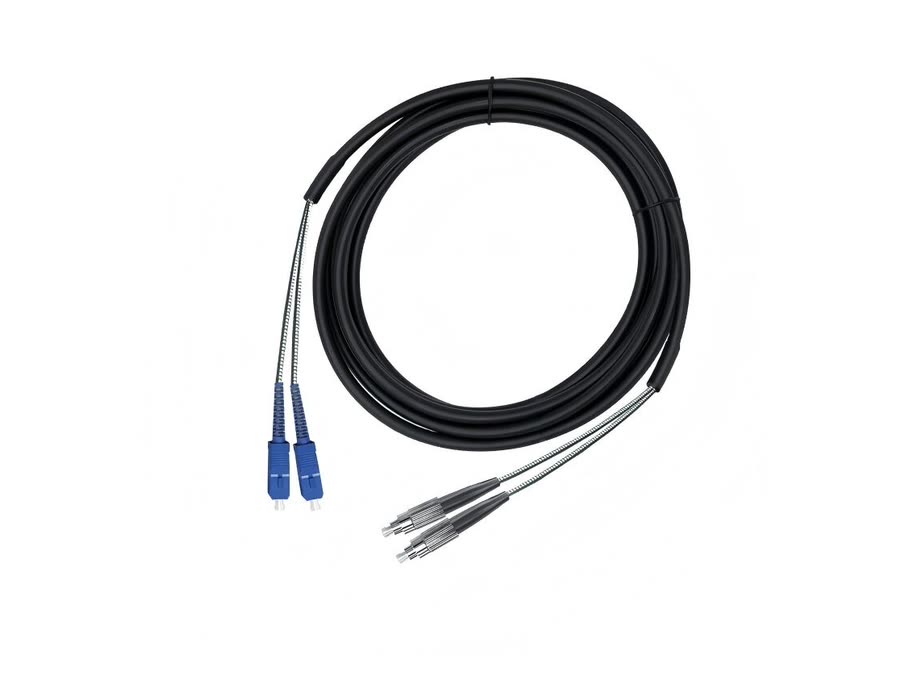

RRU/BBU Fiber Jumper with Armored Breakout – 2 Core Custom FTTA Patch Cord

2 core · armored

2 Core Indoor
Request a quote All products
RRU/BBU Fiber Jumper with Armored Breakout – 2 Core Custom FTTA Patch Cord

01

Product description

As global 5G rollouts accelerate, the demand for reliable Remote Radio Unit (RRU) connectivity has never been higher. This 2-Core Remote Patch Cord is a specialized “Fiber-to-the-Antenna” solution designed to bridge the gap between the ground-based BBU and tower-mounted equipment. Constructed with high-strength Polyester or Aramid Yarn fillers, the cable maintains its structural integrity even when suspended vertically over long distances. To prevent the most common cause of site failure—fiber breakage at the connector junction—the breakout tails are reinforced with Stainless Steel Spiral Armor, providing a flexible yet crush-proof shield against harsh handling and environmental stress.

02

Key features

  • Advanced "Tail" Armoring The 2-core breakout is protected by a flexible stainless steel spiral tube, offering a 100% defense against rodent bites and accidental kinking during high-altitude installation.
  • Tension-Balanced Core By utilizing precision-wound Aramid or Polyester yarns, we ensure the fiber cores remain "stress-free" even under high wind loads or ice accumulation.
  • Extreme Weather Tolerance Encased in a professional-grade LSZH or PE jacket, this jumper is built to withstand intense UV radiation and temperature fluctuations from -40°C to +85°C.
  • Low-Loss Optical Performance Every jumper is factory-terminated in a clean-room environment to ensure insertion loss remains $<0.3text{dB}$, critical for high-speed 5G data rates.
  • 5G/4G LTE Macro Sites Primary connection for RRU and BBU units.
  • Small Cell Deployments Ruggedized fiber links for urban 5G nodes.

03

Applications

  • 5G/4G LTE Macro Sites Primary connection for RRU and BBU units.
  • Small Cell Deployments Ruggedized fiber links for urban 5G nodes.
  • Industrial Wireless Connecting remote antennas in mining, oil, and gas fields.
  • Emergency Telecom Rapid-deploy fiber jumpers for mobile command units.

04

Technical specifications

ParameterValue
FeatureDetailed Specification
Core Structure2 Fibers + 2 Strength Fillers (Aramid/Polyester)
Breakout ProtectionStainless Steel Spiral Armored Tube
Connector OptionsLC-UPC/APC, SC, FC, or Waterproof ODVA/FullAXS
Standard Cable OD4.8mm / 7.0mm
Crush Resistance2000 N/100mm (Armored Section)
Minimum Bend Radius10D (Static) / 20D (Dynamic)
Jacket MaterialUV-Resistant LSZH / Flame-Retardant PE
Custom Lengths10m, 20m, 50m, 100m, up to 500m

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

05

Why buy it from Ebocom

01

Dust-controlled patch cord workshop with 100% end-face inspection and optical testing

02

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

03

Production capacity up to 100 km per day, so large project quantities keep their delivery date

04

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

05

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
