Home/Products/FTTH Drop Cable/High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member

GYFXTY

High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member

Non-armored · Central loose tube · Parallel FRP strength members

Last mileAerial
Request a quote All products
High Quality GYFXTY Central Loose Tube Non-Armored Outdoor Fiber Optic Cable with Parallel FRP Strength Member

01

Product description

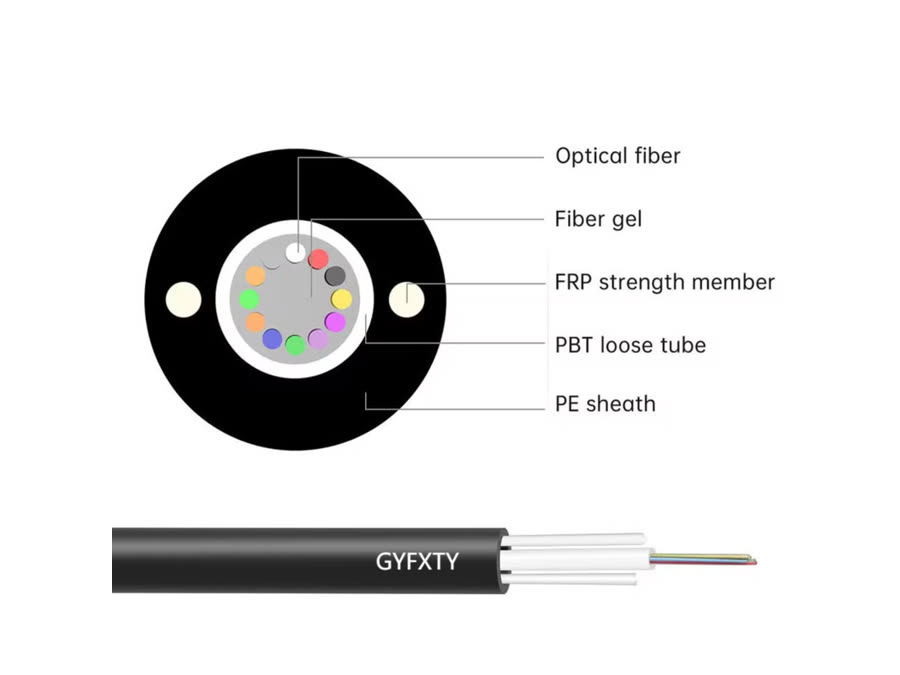

The GYFXTY Central Loose Tube Fiber Optic Cable is a non-armored outdoor cable specially designed for FTTH networks, backbone connections, and last-mile telecom installations. Its core contains a single central loose tube filled with water-blocking gel to protect the optical fibers and ensure low signal attenuation. Two parallel FRP (Fiber Reinforced Plastic) strength members provide excellent tensile strength and non-metallic construction, making the cable ideal for areas with lightning risk or electromagnetic interference. Lightweight yet durable, this cable is known in some markets as Ground Drop Cable, delivering stable, high-bandwidth transmission for a wide range of outdoor applications.

02

Key features

  • Central Loose Tube Design for superior fiber protection and easy handling
  • Two Parallel FRP Strength Members for high tensile performance and all-dielectric safety
  • Non-Armored, Lightweight Construction for cost-effective transportation and installation
  • Excellent UV resistance, moisture blocking, and long-term reliability
  • Compatible with aerial, duct, or ground drop installations
  • OEM/ODM Service customizable fiber count, jacket color, drum length, and print

03

Applications

  • FTTH (Fiber to the Home) networks
  • Telecommunication backbone and access networks
  • Aerial pole-to-pole or duct installations
  • Rural broadband and last-mile fiber connections
  • Electrically sensitive environments requiring all-dielectric cables

04

Technical specifications

ItemSpecification
Fiber TypeSingle-mode (G652D / G657A1 / G657A2) or Multimode optional
Fiber Count2–24 cores
Cable StructureCentral loose tube filled with water-blocking gel
Strength MemberTwo parallel FRP (Fiber Reinforced Plastic) rods
Outer Jacket MaterialUV-resistant PE or LSZH
Outer DiameterApprox. 7.0 – 10.5 mm (customizable)
Installation MethodsAerial, duct, or ground drop
Operating Temperature-40°C to +70°C
Standards ComplianceITU-T G.652/G.657, IEC 60794, ISO/IEC

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

05

Why buy it from Ebocom

01

13 Years of Manufacturing Experience in FTTH and outdoor fiber optic cables

02

Strict Quality Testing with an in-house product performance laboratory

03

Fast Production & Delivery, with daily capacity of up to 100 km

04

Proven global export experience for telecom and broadband projects
