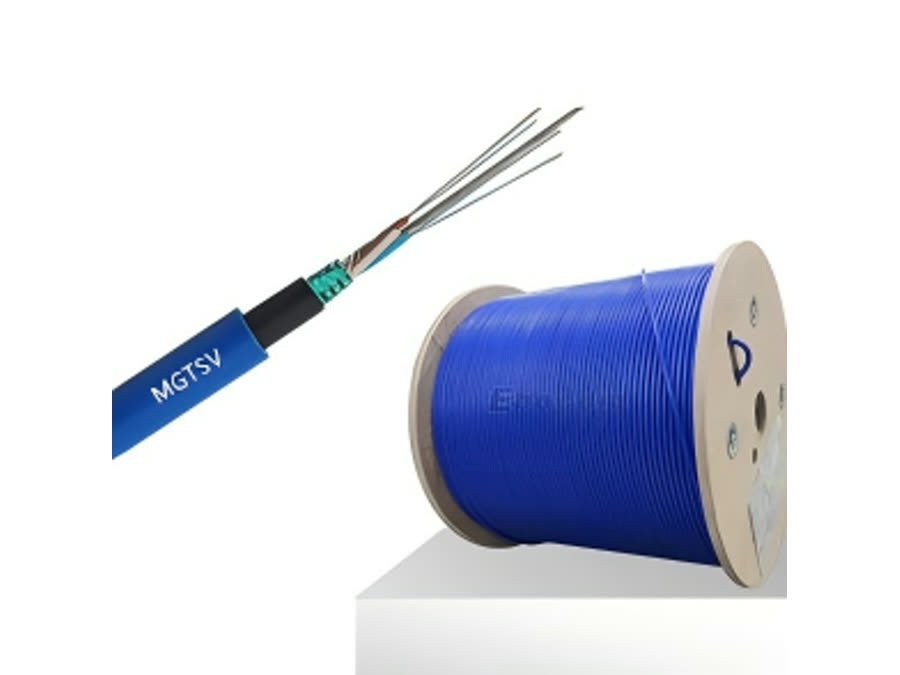

MGTSV 48 Core Mining Fiber Optic Cable Stranded Loose Tube

Name: MGTSV 48 Core Mining Fiber Optic Cable Stranded Loose Tube
Brand: Ebocom

48 core · loose tube

48 Core Underground mine

Request a quote All products

MGTSV 48 Core Mining Fiber Optic Cable Stranded Loose Tube

Product description

The MGTSV 48 Core Mining Fiber Optic Cable is a high-density, flame-retardant communication cable engineered specifically for the hazardous and demanding environments of underground mining operations. Utilizing a robust stranded loose tube structure, this cable securely groups 48 single-mode fiber cores into protective tubes spun around a central strength member, ensuring stable signal transmission and high bandwidth capacity even under continuous mechanical vibration. Built to comply with strict mine safety standards, the MGTSV cable features a heavy-duty double jacket structure with a highly visible, distinctive blue outer sheath for effortless identification in dark underground tunnels. To meet diverse regulatory frameworks, the outer flame-retardant PVC or LSZH jacket can be tailored to customized flame-retardant ratings (such as specialized mine-safety certifications), providing cr

Key features

Underground Coal & Metal Mine Shafts Installed along vertical shafts and horizontal drift tunnels for main communication networks, dispatch systems, and environmental monitoring links.
Hazardous Industrial Tunnels Ideal for subway networks, railway tunnels, and enclosed utility conduits where high flame retardancy and structural visibility are mandatory.
Real-Time Mine Monitoring Systems Connecting underground video surveillance cameras, gas sensors, ventilation automation controls, and drainage telemetry to the surface command center.
High-Risk Industrial Plant Backbones Suitable for petrochemical facilities, refineries, and chemical storage areas requiring specialized flame-retardant communication backbones.
High-Density 48-Core Backbone Accommodates high-bandwidth data needs for massive underground industrial networks, reducing the need to lay multiple individual cables.
Custom Flame Retardant Protection The outer blue sheath is formulated with advanced fire-retardant additives that prevent the spread of flames along the cable runway during emergencies, with ratings customizable to your local mining authority requirements.

Applications

Underground Coal & Metal Mine Shafts Installed along vertical shafts and horizontal drift tunnels for main communication networks, dispatch systems, and environmental monitoring links.
Hazardous Industrial Tunnels Ideal for subway networks, railway tunnels, and enclosed utility conduits where high flame retardancy and structural visibility are mandatory.
Real-Time Mine Monitoring Systems Connecting underground video surveillance cameras, gas sensors, ventilation automation controls, and drainage telemetry to the surface command center.
High-Risk Industrial Plant Backbones Suitable for petrochemical facilities, refineries, and chemical storage areas requiring specialized flame-retardant communication backbones.

Technical specifications

Parameter	Value
Cable Feature	Technical Specification Details
Cable Model	MGTSV Mining Fiber Optic Cable
Fiber Count	48 Cores
Cable Structure	Stranded Loose Tube / Double Jacket Armor
Outer Jacket Color	High-Visibility Safety Blue
Flame Retardancy	Customizable Ratings (PVC / LSZH / Mine-Grade Flame Retardant)
Fiber Specifications	Singlemode G.652.D (Low Attenuation)
Central Strength Member	Phosphated Steel Wire (High Tensile Strength)
Inner Jacket Material	Polyethylene (PE)
Moisture Barrier / Armor	Corrugated Steel Tape Armoring (Anti-Crush / Anti-Rodent)
Outer Jacket Material	Flame-Retardant blue PVC or specialized compound
Max Tensile Strength	Short term: 1500 N	Long term: 600 N
Crush Resistance	Short term: 3000 N/100mm	Long term: 1000 N/100mm
Operating Temperature	-40°C to +70°C

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

High-Density 48-Core Backbone Accommodates high-bandwidth data needs for massive underground industrial networks, reducing the need to lay multiple individual cables.

Custom Flame Retardant Protection The outer blue sheath is formulated with advanced fire-retardant additives that prevent the spread of flames along the cable runway during emergencies, with ratings customizable to your local mining authority requirements.

High-Visibility Blue Sheath The bright blue jacket distinguishes the fiber optic communication line from high-voltage power cables in dim underground environments, preventing accidental cutting during maintenance.

Corrugated Steel Tape Armoring Embedded between the double jackets, the steel tape layer offers excellent crush resistance, impact protection against falling rocks, and a reliable physical barrier against rodents.

Stranded Loose Tube Core Protects the 48 single-mode cores from longitudinal tension and moisture ingress, guaranteeing long-term operational lifespan in humid underground conditions.
