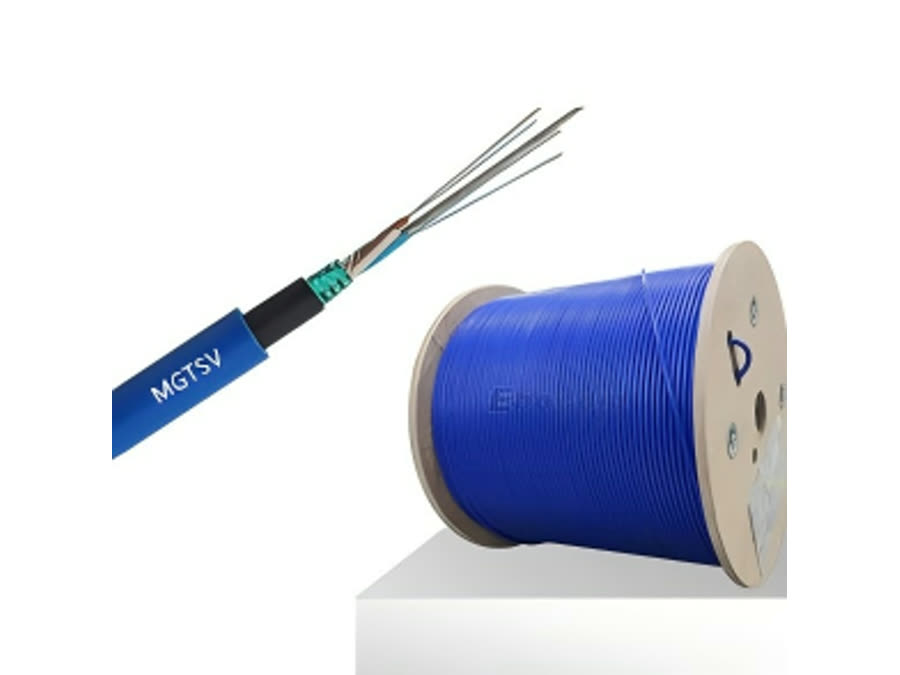

MGTSV 48 Core Mining Fiber Optic Cable with Flame Retardant Sheath and Steel Tape Armor

48 core · flame retardant

48 Core Underground mine
MGTSV 48 Core Mining Fiber Optic Cable with Flame Retardant Sheath and Steel Tape Armor

01

Product description

MGTSV 48 Core Mining Fiber Optic Cable is specially designed for harsh environments such as coal mines, tunnels and industrial communication networks. It adopts a stranded loose tube structure with steel strength member, steel tape armor and flame retardant outer sheath, providing excellent mechanical protection and stable optical transmission. This mining fiber optic cable is suitable for underground communication systems, mine monitoring networks and industrial fiber optic applications where safety and reliability are required. The loose tube design protects the optical fibers from external stress, while the armored structure improves resistance to impact, pressure and moisture.

02

Key features

  • 48 core high capacity fiber optic cable
  • Stranded loose tube structure for better fiber protection
  • Flame retardant design for mining applications
  • Steel tape armored structure with strong mechanical performance
  • Excellent water resistance and moisture protection
  • Suitable for underground and industrial communication networks

03

Applications

  • Underground coal mine and tunnel communication
  • Shaft, roadway and belt conveyor monitoring
  • Industrial plants with flame-retardant cabling requirements
  • Mine automation, SCADA and video surveillance networks

04

Technical specifications

ItemDescription
Product NameMGTSV Mining Fiber Optic Cable
Fiber Count48 Core
Fiber TypeSingle Mode G652D / G657A1 (Optional)
Cable StructureStranded Loose Tube
Central Strength MemberSteel Wire
Armor TypeSteel Tape Armor (PSP)
Outer SheathFlame Retardant PVC / PE
ApplicationMining, Underground Communication, Industrial Network
InstallationDuct, Tunnel, Direct Burial
Working Temperature-40℃ to +70℃

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

05

Why buy it from Ebocom

01

Mining cable built to underground safety requirements, with flame-retardant testing before shipment

02

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

03

Production capacity up to 100 km per day, so large project quantities keep their delivery date

04

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

05

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
