MGXTWV 12 Core Mining Fiber Optic Cable With Central Loose Tube

Name: MGXTWV 12 Core Mining Fiber Optic Cable With Central Loose Tube
Brand: Ebocom

12 core · loose tube

12 Core Underground mine

Request a quote All products

MGXTWV 12 Core Mining Fiber Optic Cable With Central Loose Tube

Product description

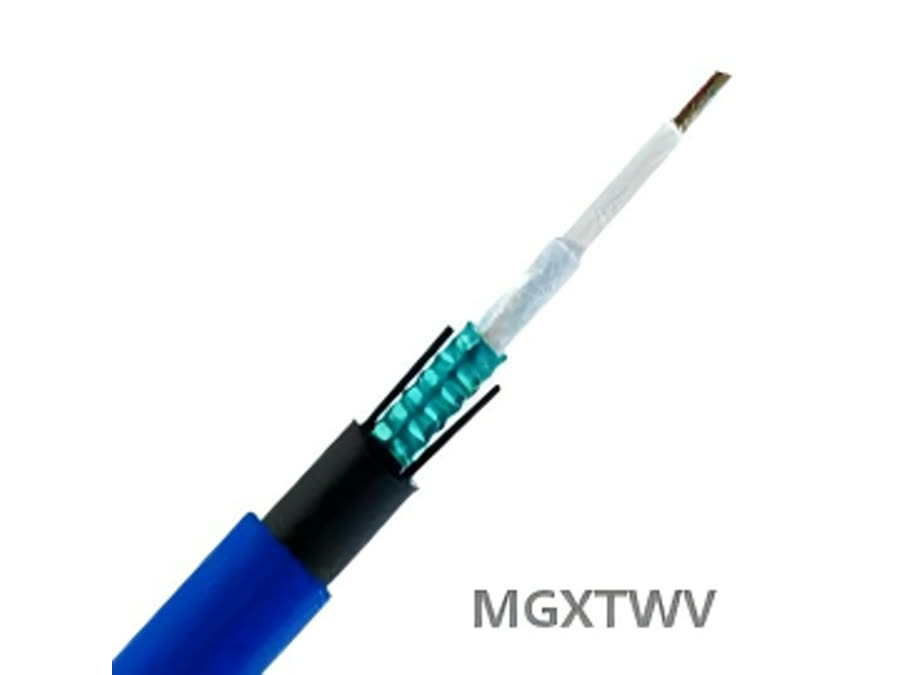

The MGXTWV 12 Core Mining Fiber Optic Cable is a compact, heavy-duty flame-retardant cable engineered for reliable data and voice communications in hazardous underground mining environments. Utilizing a central loose tube (unicore) structure, this cable encapsulates 12 single-mode G.652.D fiber cores inside a gel-filled central tube, ensuring superior optical performance and complete resistance to moisture ingress. Built to comply with stringent underground safety standards, the cable is reinforced with two parallel phosphated steel wires embedded as primary strength members to deliver exceptional tensile strength and crush resistance. Encased in a heavy-duty double jacket structure featuring a high-visibility blue flame-retardant outer sheath, the MGXTWV cable provides robust protection against mechanical impacts, falling rocks, and harsh chemical exposures in underground shafts.

Key features

Underground Mine Shafts & Drift Tunnels Installed along horizontal haulage ways and vertical shafts for primary data links, dispatching systems, and emergency communication.
Underground Sensor & Automation Networks Connecting gas detectors, ventilation monitoring controls, automated drainage pumps, and substation telemetry to central control rooms.
Subway & Utility Tunnel Infrastructure Ideal for transit tunnels and enclosed utility conduits requiring compact, highly flame-retardant communication cables.
Hazardous Industrial Plants Suitable for chemical processing areas and refineries needing rugged, fire-resistant fiber backbones.
Compact Central Tube Design The central loose tube configuration offers a smaller cable diameter and lighter overall weight, making pulling through tight underground conduit networks much easier.
Dual Steel Wire Strength Two heavy-duty parallel steel wires provide high tensile capability, preventing cable stretching and structural deformation during vertical shaft suspension.

Applications

Underground coal mine and tunnel communication
Shaft, roadway and belt conveyor monitoring
Industrial plants with flame-retardant cabling requirements
Mine automation, SCADA and video surveillance networks

Technical specifications

Parameter	Value
Cable Feature	Technical Specification Details
Cable Model	MGXTWV Mining Fiber Optic Cable
Fiber Count	12 Cores
Structure	Central Loose Tube (Unicore Design)
Strength Member	Dual Parallel Phosphated Steel Wires
Armor / Moisture Barrier	Corrugated Steel Tape Armoring (Double Sheath Interface)
Outer Jacket Color	High-Visibility Mine Safety Blue
Flame Retardancy	Customizable Ratings (PVC / LSZH Flame-Retardant Compound)
Fiber Specifications	Singlemode G.652.D (Low Attenuation)
Inner Jacket Material	Polyethylene (PE)
Outer Jacket Material	Flame-Retardant Blue Compound
Max Tensile Strength	Short term: 1500 N	Long term: 600 N
Crush Resistance	Short term: 3000 N/100mm	Long term: 1000 N/100mm
Operating Temperature	-40°C to +70°C

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

Mining cable built to underground safety requirements, with flame-retardant testing before shipment

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

Production capacity up to 100 km per day, so large project quantities keep their delivery date

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
