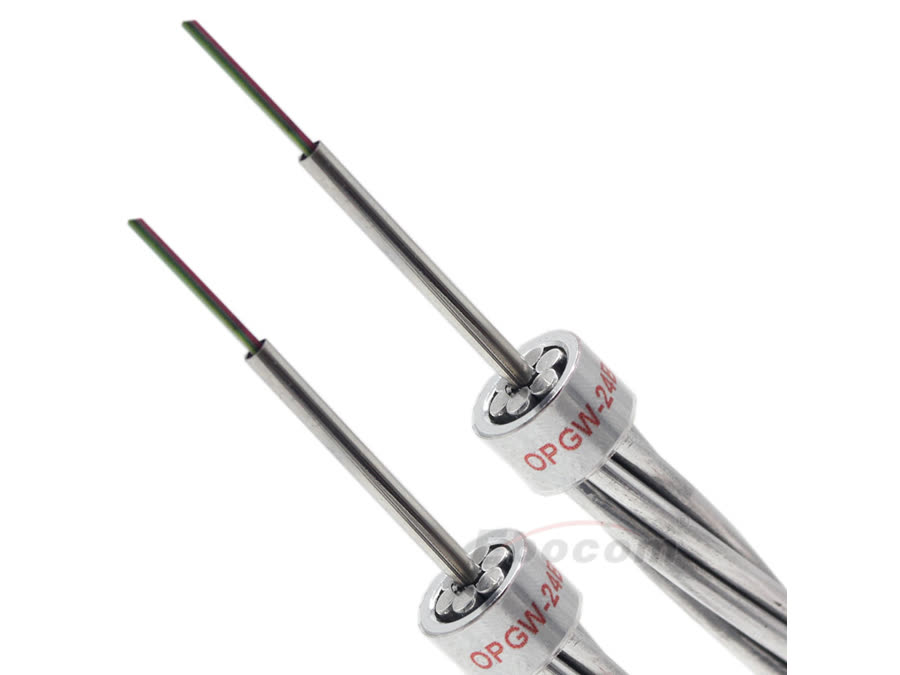

24 Core OPGW Fiber Optic Cable Central Tube Structure Optical Ground Wire for Power Transmission Lines

Name: 24 Core OPGW Fiber Optic Cable Central Tube Structure Optical Ground Wire for Power Transmission Lines
Brand: Ebocom

24 core · central tube

24 Core AerialPower line

Request a quote All products

24 Core OPGW Fiber Optic Cable Central Tube Structure Optical Ground Wire for Power Transmission Lines

Product description

The Ebocom 24 Core OPGW (Optical Ground Wire) Fiber Optic Cable is designed for power transmission lines, integrating both optical communication and grounding functions in a single durable cable. This model adopts a central stainless steel tube structure, housing up to 24 single-mode fibers, providing excellent mechanical strength, stable optical performance, and long-term reliability even in harsh outdoor environments. Ebocom owns two independent stainless steel optical tube production lines and five OPGW stranding lines combining aluminum-clad steel wires and stainless steel tubes, ensuring consistent quality and fast delivery. The cable’s high tensile strength and corrosion resistance make it ideal for installation on high-voltage transmission networks, delivering both electrical grounding and data transmission efficiently.

Key features

24 Core Fiber Capacity Supports long-distance and high-capacity communication across power transmission networks.
Central Tube Stainless Steel Structure Excellent protection for fibers, providing superior compression and corrosion resistance.
High Tensile Strength Aluminum-clad steel wires ensure mechanical reliability for power line installations.
Dual Functionality Combines fiber optic communication and grounding in one cable.
Weather & Lightning Resistant Performs reliably under extreme environmental and electrical conditions.
Factory Direct Supply Produced in-house with complete control of quality and production timelines.

Applications

Power transmission and distribution communication systems
High-voltage and ultra-high-voltage power grid networks
Smart grid and substation monitoring systems
Long-distance communication lines along power routes
Integration of communication and grounding functions

Technical specifications

Item	Specification
Fiber Type	ITU-T G.652D / G.657A1 Single Mode
Fiber Count	24 cores
Structure Type	Central stainless steel tube
Strength Member	Aluminum-clad steel wires
Outer Diameter	Customizable per project requirements
Tensile Strength	30–180 kN (depending on configuration)
Short Circuit Current	10–25 kA / 1s (customizable)
Temperature Range	-40°C to +85°C
Standards	IEC 60794 / IEEE 1138 / ITU-T G.652D

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

Strong Production Capacity 2 stainless steel tube lines + 5 OPGW stranding lines ensure high output and fast delivery.

Reliable Quality In-house testing for tensile, torsion, and optical performance ensures stability and durability.

Professional Engineering Team Supports customization for different voltage levels and span lengths.

Proven Performance Widely used in power utilities and communication projects across Asia, Africa, and the Middle East.
