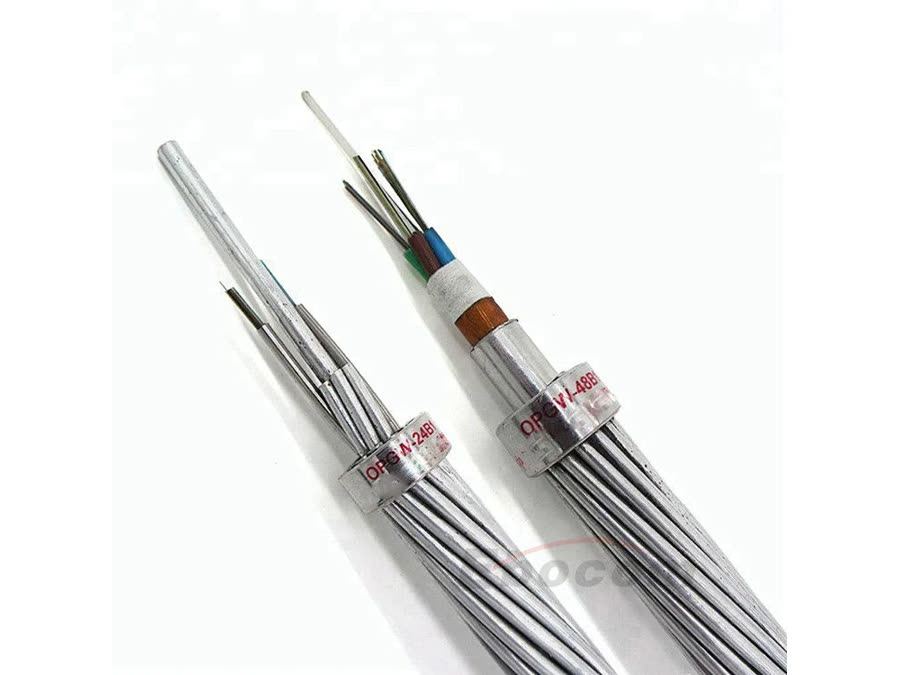

OPGW 72B1-150 Optical Ground Wire Cable 72 96 144 Core for 110KV 220KV Transmission Lines

Name: OPGW 72B1-150 Optical Ground Wire Cable 72 96 144 Core for 110KV 220KV Transmission Lines
Brand: Ebocom

72–144 core

72–144 Core AerialPower line

Request a quote All products

OPGW 72B1-150 Optical Ground Wire Cable 72 96 144 Core for 110KV 220KV Transmission Lines

Product description

Our OPGW 72B1-150 Optical Ground Wire Cable is engineered for high-voltage power transmission systems, offering the dual function of a traditional ground wire and a high-capacity fiber optic communication line. Specifically designed for 110KV and 220KV transmission towers, this overhead line provides exceptional mechanical strength and superior short-circuit current capacity. With options ranging from 72, 96, to 144 cores, this OPGW cable utilizes premium single-mode fibers (G.652D/B1) housed in lightning-resistant stainless steel tubes, ensuring uninterrupted data transmission under extreme environmental conditions.

Key features

Dual Functionality Serves as both a reliable grounding wire and a high-speed fiber optic communication backbone.
Excellent Short-Circuit Capacity The 150mm² cross-section design handles high fault currents safely on 110KV and 220KV networks.
Robust Protection Stainless steel loose tubes offer superior mechanical shielding against lightning strikes, wind loading, and ice.
High Fiber Count Availability Easily scalable with 72, 96, or 144 core configurations to support future telecom expansion.
Long Lifespan Anti-corrosion aluminum-clad steel wires ensure a service life matching or exceeding the power grid infrastructure.
Overhead electrical power lines rehabilitation and upgrades (110KV and 220KV grids)

Applications

Overhead power transmission lines from 110kV to 500kV
Power grid SCADA, teleprotection and dispatch communication
Substation interconnection and line monitoring
Smart grid and utility automation backbones

Technical specifications

Parameter	Specifications
Product Type	OPGW (Optical Ground Wire)
Model	OPGW-72B1-150 / Customized
Fiber Count	72 Core, 96 Core, 144 Core
Fiber Type	G.652D (B1.3) Single-mode Fiber
Cross Section Area	150 mm²
Application Voltage	110KV, 220KV, 500KV Overhead Transmission Lines
Structure	Stainless Steel Tube Center/Layer Stranded
Outer Wire Material	Aluminum-Clad Steel Wire (ACS) & Aluminum Alloy Wire (AA)
Short-Circuit Capacity	High Fault Current Rating
Standards Compliant	IEEE 1138, IEC 60794-4-10

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

Professional OPGW manufacturer 2 stainless steel tube lines and 5 OPGW stranding lines in our own plant

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

Production capacity up to 100 km per day, so large project quantities keep their delivery date

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
