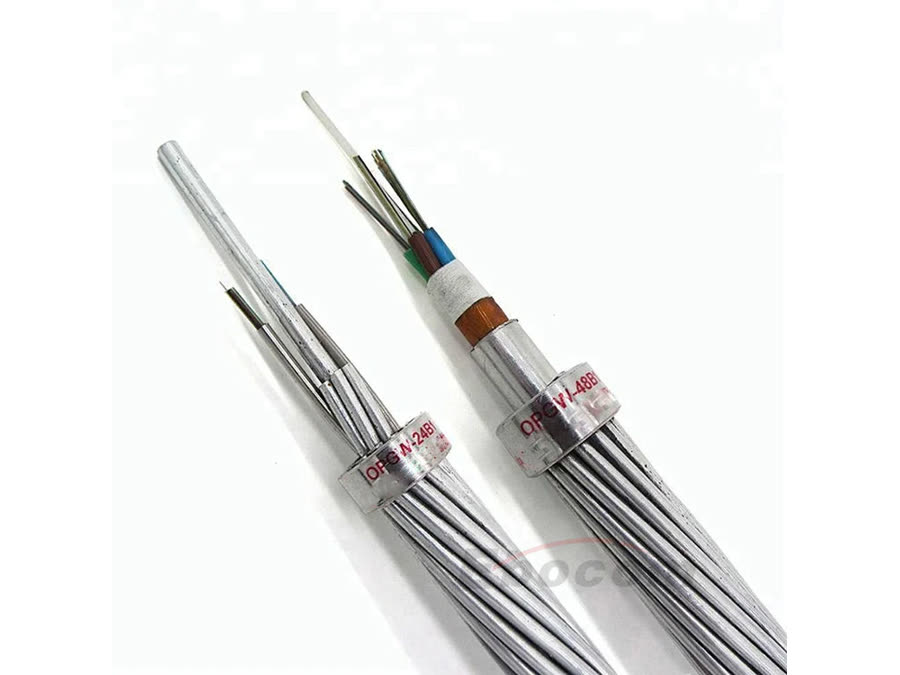

Home/Products/OPGW Cable/OPGW48B1-50 Overhead Ground Wire Cable 24 48 72 96Core For Tower 220KV Networking Communication
OPGW
24–96 core
01
OPGW optical cables are widely used in power systems, primarily in the following scenarios 1. Power Communication Trunk Lines: Serving as the backbone of the power communication network, they transmit important information such as dispatch calls, telecontrol signals, and relay protection signals.
02
03
04
| Parameter | Value |
|---|---|
| Product Type | OPGW — Optical Ground Wire |
| Fiber Count | 24 to 96 core |
| Fiber Type | ITU-T G.652D single mode |
| Structure | Stainless steel tube, layer stranded |
| Strength Member | Aluminum-clad steel (ACS) + aluminum alloy wire |
| Tensile Strength (RTS) | 50–180 kN, designed per line |
| Short Circuit Capacity | 10–25 kA / 1s, customizable |
| Operating Temperature | -40°C to +85°C |
| Standards | IEEE 1138 / IEC 60794-4-10 / GB/T 7424 |
Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.
05
Professional OPGW manufacturer 2 stainless steel tube lines and 5 OPGW stranding lines in our own plant
In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch
Production capacity up to 100 km per day, so large project quantities keep their delivery date
Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification
Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
