AA Layer OPGW 48 Core Fiber Optic Cable Stranded Single Mode G652 Ground Wire Outdoor Aerial Dielectric

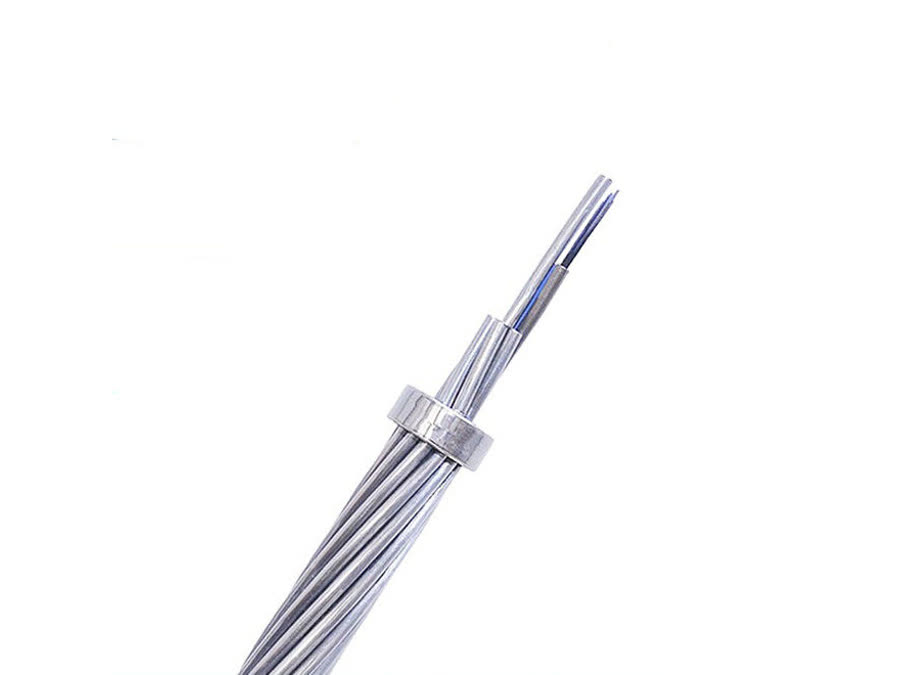

Name: AA Layer OPGW 48 Core Fiber Optic Cable Stranded Single Mode G652 Ground Wire Outdoor Aerial Dielectric
Brand: Ebocom

48 core

48 Core AerialPower line

Request a quote All products

AA Layer OPGW 48 Core Fiber Optic Cable Stranded Single Mode G652 Ground Wire Outdoor Aerial Dielectric

Product description

OPGW cable is mainly used in the communication line of the new high-voltage transmission system, or to replace the existing ground wire of the original overhead high-voltage transmission system. It contains optical fiber communication lines and has good performance to prevent lightning strikes. OPGW cable is mainly used in 500KV, 220KV and 110KV lines, limited by power cut, security and other elements, mostly used in new lines. Its applications are:high pressure over 110kv, with a longer span (usually over 250M).

Key features

The diameter of the optical cable is small, so the additional load on the tower is small.
The design of aluminum-clad steel pipe is reasonable, the tensile strength is high, and the excess length of optical fiber is well controlled.
Good safety performance, and lightning protection.
Different armor combinations can meet different performance requirements.

Applications

OPGW cable is mainly used in 500KV, 220KV and 110KV lines, limited by power cut, security and other elements, mostly used in new lines. Its applications are:high pressure over 110kv, with a longer span (usually over 250M).

Technical specifications

Parameter	Value
Type	single/Double Layer Structure Aluminum tube/ Al-clad-stainless steel tube
Fiber Count	24 Material Aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires
Fiber Type	Singlemode Installed High pressure line over 110kv;
Diameter(mm)	12 Weight(kg/km) 500
RTS(KN)	81 Short Circuit(Ka2s) 41
Application	Aerial / ground (earth) wire. OEM yes

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

Professional OPGW manufacturer 2 stainless steel tube lines and 5 OPGW stranding lines in our own plant

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

Production capacity up to 100 km per day, so large project quantities keep their delivery date

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
