Home/Products/Indoor Cable/GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket

GJBFJH

GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket

Name: GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket
Brand: Ebocom

4–48 core · OM2 · LSZH

4–48 Core Indoor

Request a quote All products

GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket

Product description

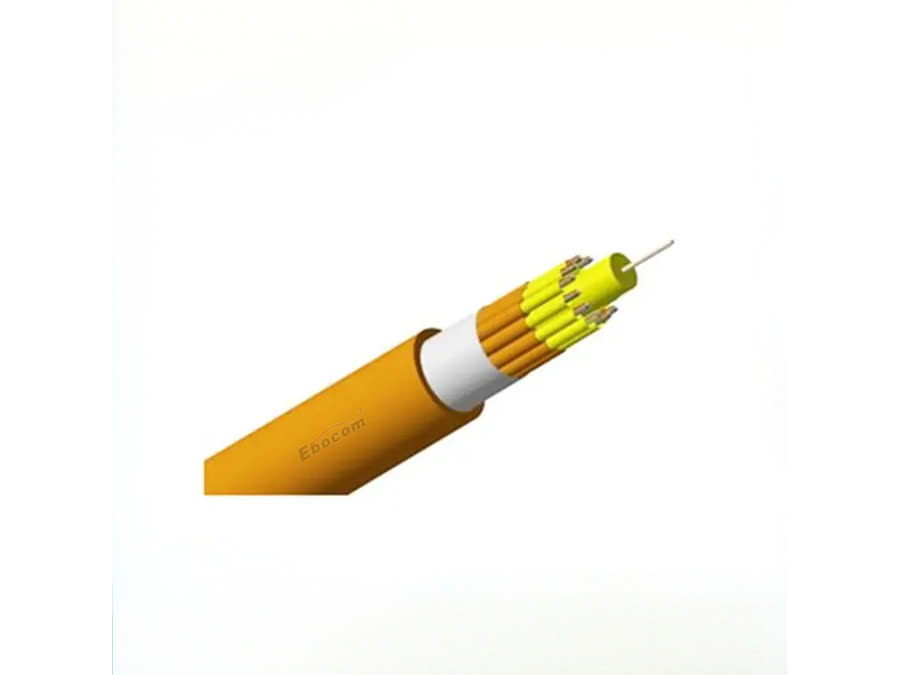

The GJBFJH OM2 indoor breakout fiber optic cable is a durable and flexible solution designed for indoor distribution, interconnection, and patching applications. It features a central FRP strength member and several 2.0mm sub-units, each containing a tight-buffered OM2 multimode fiber, surrounded by polyester or aramid yarns and an LSZH jacket. This structure provides easy termination, strong mechanical protection, and excellent fire safety, making it perfect for data centers, local area networks (LAN), and indoor wiring systems. High-speed performance: OM2 multimode fibers support up to 10Gbps transmission over 550 meters, ensuring stable and efficient data transfer.

Key features

High-speed performance OM2 multimode fibers support up to 10Gbps transmission over 550 meters, ensuring stable and efficient data transfer.
Safe for indoor environments LSZH outer sheath produces minimal smoke and no halogen gases during fire incidents.
Strong mechanical protection Central FRP rod enhances tensile strength and cable stability during installation.
Simple deployment Each sub-unit can be independently stripped and connected — no breakout kit required.
Versatile use Ideal for enterprise networks, backbone cabling, patch panels, and short-distance communication links.

Applications

Data centers and control rooms
Building backbone and horizontal cabling
Indoor fiber distribution and patching systems
LAN and server room connections
Short-distance high-speed transmission networks

Technical specifications

Item	Description
Cable Type	GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type	OM2 Multimode (50/125μm)
Fiber Count	2–48 cores (customized)
Sub-unit Construction	2.0mm tight-buffered fiber + Polyester/Aramid yarns + LSZH jacket
Central Strength Member	FRP (Fiber Reinforced Plastic)
Outer Sheath Material	LSZH (Low Smoke Zero Halogen)
Outer Diameter	7.0–12.5mm (depends on fiber count)
Attenuation	≤ 3.5dB/km @850nm, ≤ 1.5dB/km @1300nm
Tensile Strength	≥ 1000N
Crush Resistance	≥ 1000N/100mm
Operating Temperature	-20°C ~ +70°C
Color Options	Orange (OM2 standard) or customized per project requirement

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

12+ years manufacturing experience in indoor and outdoor fiber optic cables

In-house testing lab for performance and materials verification

OEM/ODM customization for fiber type, color, jacket, and printing

Fast delivery with global logistics support and stable quality supply
