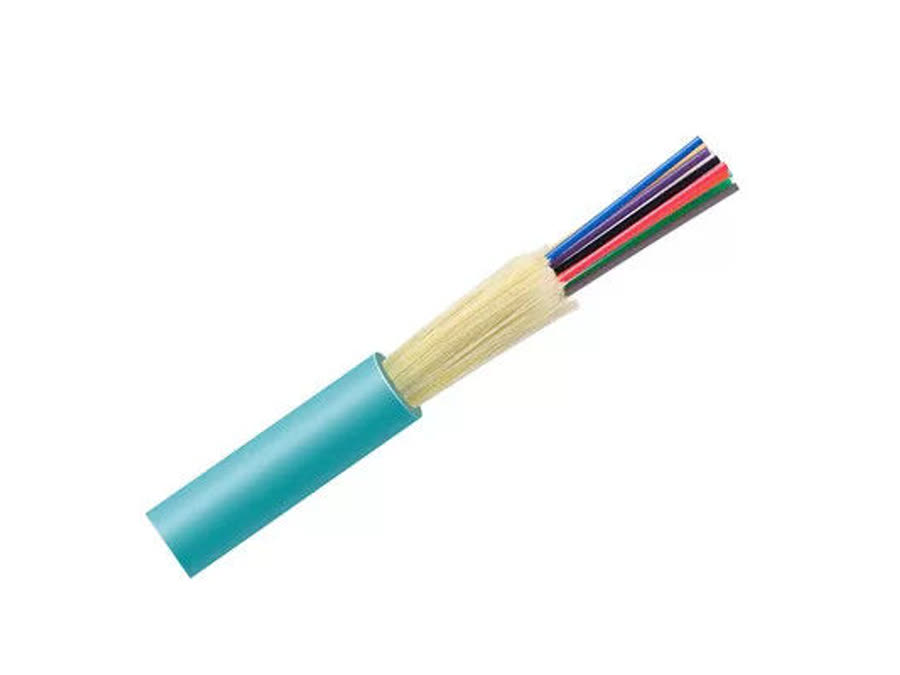

Indoor GJFJV Fiber Optic Cable 0.9mm Tight Buffer Fiber Cable With Aramid Yarn

Name: Indoor GJFJV Fiber Optic Cable 0.9mm Tight Buffer Fiber Cable With Aramid Yarn
Brand: Ebocom

tight buffer

Indoor

Request a quote All products

Product description

The GJFJV Indoor Fiber Optic Cable is a premium-quality, tight-buffered optical cable with a PVC outer sheath, designed for reliable and high-speed data transmission in indoor network environments. It features tight-buffered single-mode (G652D/G657A1/G657A2) or multimode (OM1/OM2/OM3/OM4) optical fibers, reinforced with aramid yarn (Kevlar) or polyester yarn for added tensile strength and flexibility. With fiber counts ranging from 2 to 48 cores, this cable is widely used in FTTH, LAN, enterprise networks, data centers, and building cabling.

Key features

Tight-buffered fiber for direct connector termination without pigtails
Aramid yarn reinforcement gives flexibility with high tensile strength
LSZH sheath low smoke, zero halogen, flame retardant for occupied buildings
Compact diameter and small bend radius for dense riser and tray routing
Single-mode and OM1 to OM5 multimode fiber options

Applications

1. FTTH (Fiber to the Home) and FTTx Networks 2. Indoor Backbone Cabling & Structured Wiring 3. LAN & WAN Communication Systems 4. Enterprise & Data Center Networks 5. Security & Surveillance Fiber Cabling 6. Broadcast & Multimedia Fiber Infrastructure

Technical specifications

Parameter	Specification
Cable Type	GJFJV Indoor Fiber Optic Cable
Fiber Type	Single Mode (G652D/G657A1/G657A2) / Multimode (OM1/OM2/OM3/OM4)
Fiber Count	2-48 cores
Buffer Type	Tight Buffered
Strength Member	Aramid Yarn / Polyester Yarn
Outer Sheath Material	PVC (Polyvinyl Chloride)
Cable Diameter	Varies by fiber count
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +70°C
Tensile Strength	High mechanical durability
Fire Performance	Flame-retardant PVC material
Installation Type	Indoor structured cabling, horizontal and vertical wiring

Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.

Why buy it from Ebocom

Indoor and LSZH cable production with flame-retardant material verified in our own lab

In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch

Production capacity up to 100 km per day, so large project quantities keep their delivery date

Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification

Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
