Home/Products/Indoor Cable/GJFJV GJFJH Indoor Optic Cable 2-96 cores Single Mode G652D Distribution communication
GJFJV
2–96 core · G652D
01

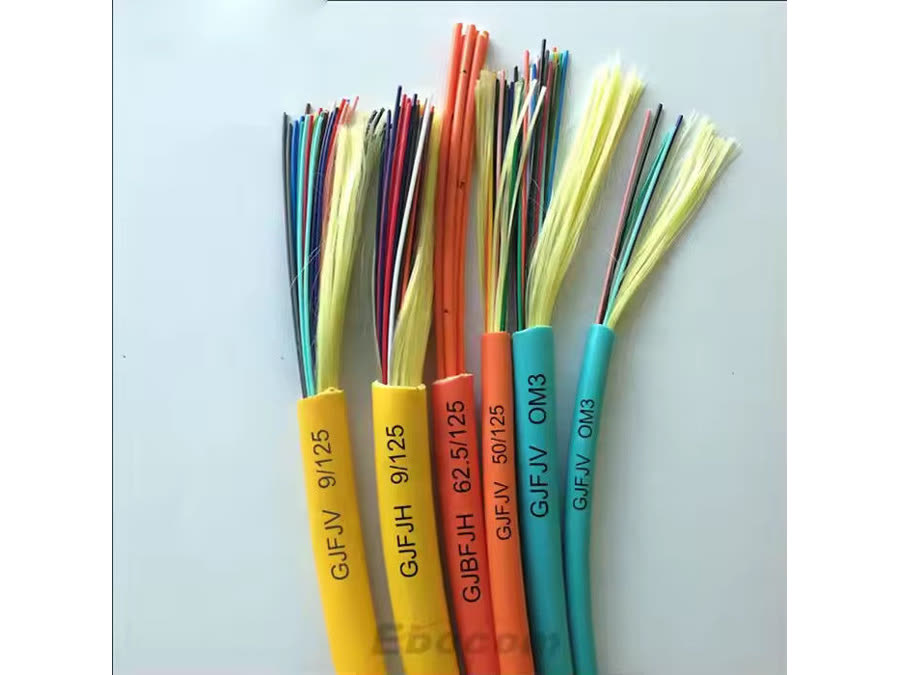

The structure of GJFJV/GJFJH optical cable adopts multiple φ900μm (single mode or multimode) flame retardant tight-buffered optical fibers as optical transmission medium, which are wrapped with a layer of aramid yarn or glass yarn as stress reinforcement unit, and covered with PVC sheath or extruded with a layer of LSZH (low smoke zero halogen) sheath.
02
03
04
| Parameter | Value |
|---|---|
| Cable Model | Outer Diameter (mm) Weight (kg/km) Tensile Strength(N) Crush Resistance(N/100mm) Bending Radius Jacket Thickness(mm) |
| Long term | Short term Long term Short term Dynamic Static |
| GJFJV-2F | 3.6±0.2 12.5 180 440 300 1000 20D 10D 0.45±0.05 |
| GJFJV-4F | 4.7±0.2 17.6 180 440 300 1000 20D 10D 0.8±0.1 |
| GJFJV-6F | 5.2±0.2 22.8 180 440 300 1000 20D 10D 0.9±0.1 |
| GJFJV-8F | 5.8±0.2 26.7 180 440 300 1000 20D 10D 0.9±0.1 |
| GJFJV-12F | 6.3±0.2 32.7 180 440 300 1000 20D 10D 0.9±0.1 |
| GJFJV-24F | 8.0±0.2 53 200 660 300 1000 20D 10D 1.0±0.1 |
Other fiber counts, sheath materials and drum lengths are produced to order — send us the line drawing or the standard you work to.
05
Indoor and LSZH cable production with flame-retardant material verified in our own lab
In-house performance laboratory attenuation, tensile, crush, temperature cycling and water penetration testing on every batch
Production capacity up to 100 km per day, so large project quantities keep their delivery date
Full OEM / ODM support fiber type, sheath material, print marking, drum length and packaging to your specification
Export experience across telecom operators, power utilities and distributors worldwide, with document and logistics support
